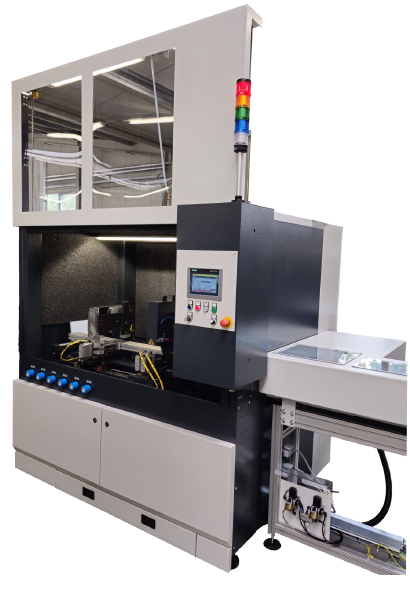

AUTOMATIC CIRCULAR SAW PROFILMA 460
stokta mevcut
SKU
AC460
| The Profilma 460 is a fully automatic circular saw engineered for precise 90° cuts in aluminum and other nonferrous metal profiles. This saw is designed to deliver high quantities of precise cut parts and can be fully integrated into production lines. |
| Blade diameter | Motor power | Material feed | Saw feed / direction |
| 460 mm | 12KW (18,5KW**) S6 | Servo controlled ball & screw |
Servo controlled ball & screw, from the rear top to the front bottom |

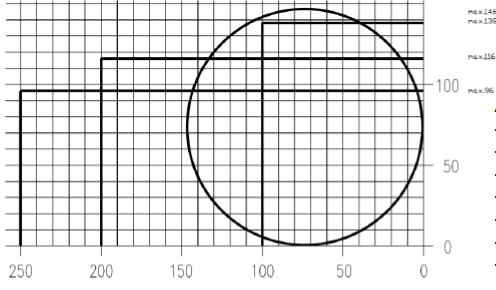

| Min-max cutting heigth / width |
Min / max cut-off length | Lubrication | Remote service possible? |
| 10-145 / 10-250 mm Optionally from 3mm |
10 / 2400 mm Optionally from 3mm |
Minimal quantity lubricator | YES |
| Approx. cycle time* | Usable to process: | ||
| 4-5 Sec. | Aluminium and PVC profiles, as well as copper and brass profiles |
